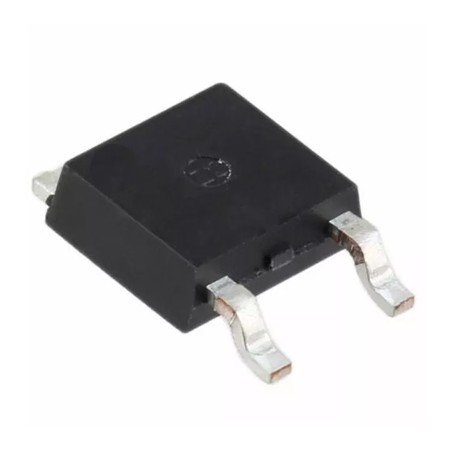

STD20N20T4, D20N, 200V 18A TO-252 Mosfet Transistör
STD20N20T4, D20N, N-Channel 200V 18A TO-252 Mosfet Transistör
STD20N20T4, D20N, N-Channel 200V 18A TO-252 Mosfet Transistör
| FET Type | N-Channel |
|---|---|
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200V |
| Current - Continuous Drain (Id) @ 25°C | 18A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 125mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 39nC @ 10V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 940pF @ 25V |
| FET Feature | - |
| Power Dissipation (Max) | 90W (Tc) |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
- Transistör | Akım
- 18 Amper
- Transistör | Tip
- NPN
- Transistör | Kılıf
- TO-252 (Dpak)
- Transistör | Cins
- Mosfet
- Transistör | Voltaj
- 200V
