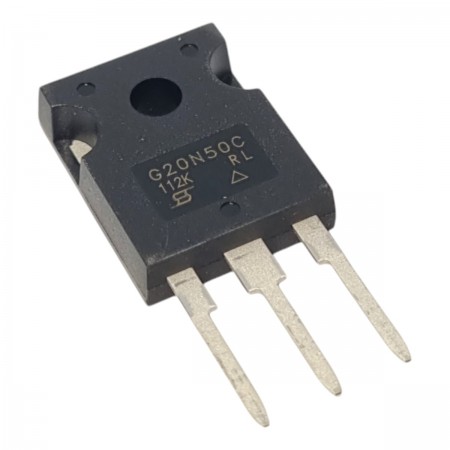

SIHG20N50C-E3, G20N50C, 500V 20A TO-247 Mosfet Transistör
SIHG20N50C-E3, SIHG20N50C, G20N50C, N-Channel 500V 20A TO-247 Mosfet Transistör
SIHG20N50C-E3, SIHG20N50C, G20N50C, N-Channel 500V 20A TO-247 Mosfet Transistör
| FET Type | N-Channel |
|---|---|
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 270mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 76nC @ 10V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2942pF @ 25V |
| FET Feature | - |
| Power Dissipation (Max) | 250W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
- Transistör | Akım
- 20 Amper
- Transistör | Tip
- NPN
- Transistör | Kılıf
- TO-247
- Transistör | Cins
- Mosfet
- Transistör | Voltaj
- 500V
