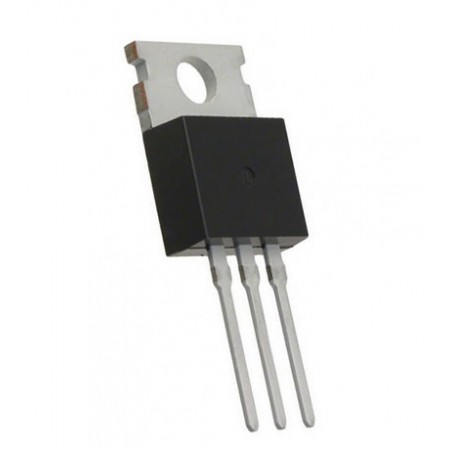

IRFB7440, 40V 120A TO-220 Mosfet Transistör
IRFB7440, N-Channel 40V 120A (Tc) 143W (Tc) TO-220 Mosfet Transistör, IRFB7440PBF
IRFB7440, 40V 120A N-Channel 40V 120A (Tc) 143W (Tc) Through Hole TO-220 Mosfet Transistör, IRFB7440PBF
| FET Type | N-Channel |
|---|---|
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 2.5mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 3.9V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 135nC @ 10V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4730pF @ 25V |
| FET Feature | - |
| Power Dissipation (Max) | 143W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
- Transistör | Akım
- 120 Amper
- Transistör | Tip
- NPN
- Transistör | Kılıf
- TO-220
- Transistör | Cins
- Mosfet
- Transistör | Voltaj
- 40V
