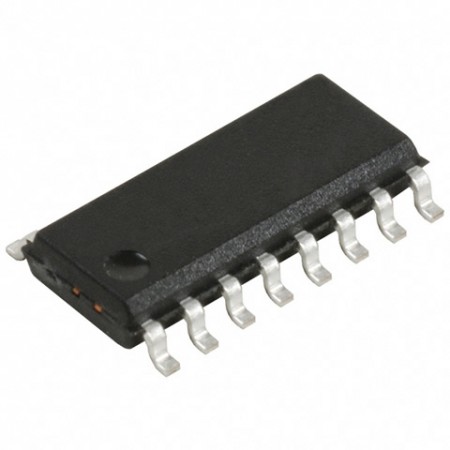

DG509ADY, SOIC-16 SMD Entegre Devre
DG509ADY, SOIC-16 SMD Entegre Devre
DG509ADY, SOIC-16 SMD Entegre Devre
| Switch Circuit | SP4T |
|---|---|
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | 27Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 1.5µs, 1µs |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
