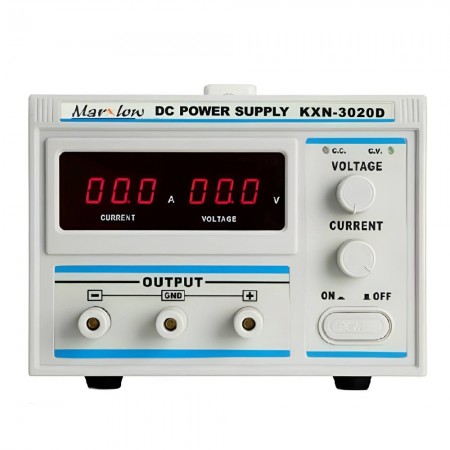

KXN-3020D, 0~30VDC 0~20A Ayarlı Güç Kaynağı
KXN-3020D - KXN3020D 0~30VDC 0~20A Çıkış Ayarlı Güç Kaynağı
Product Desciption - KXN-3020D
KXN Series Linear DC Power Supply
Features
A. Single channel output
B. Front/ behind output terminal
C. Internal radiator and electronic temperature control cooling
D. Digital or pointer meter display output voltage and output current
E. Current-limiting protection and users can set the current-liming protection point arbitrarily
F. Reverse polarity protection
Application: Auto industry / Electronic industry / Communications industry / Digital product /
Research institutions / Educational institutions
Model : KXN-3020D
Voltage Output : 0-30V
Current Output : 0-20A
Weight : 6.84kg
Dimensions(mm) 375×263x164
Input voltage AC 220V± 10% 50Hz/60Hz ( also can be AC 110V± 10% 50Hz/60Hz if required )
Working Condition Temperature: -10-40Degree Celsius Relative humidity: <90%
Storage Condition Temperature: -10-40Degree Celsius Relative humidity: <80%
Constant Voltage Operation Voltage stability: ≤ 0.01%+2mV
Load stability: ≤ 0.01%+2mV
Recovery time: ≤ 100uS
Ripple and noise: ≤ 1mVrms ( effective value )
Temperature coefficient: ≤ 200PPM/Degree Celsius
Constant Current Operation Current stability: ≤ 0.1%+3mA
Load stability: ≤ 0.2%+3mA
Ripple and noise: ≤ 2mArms ( effective value )
Voltage Display Precision 3 digit LED display: ± 1%± 1 word
Current Display Precision 3 digit LED display: ± 1%± 1 word
| Model | Output Voltage | Output Current | Display | Display precision | Dimensions(mm) |
| KXN-3020D | 0-30V | 0-20A | LED display | ±1%±1word | 375(L)263(W)164(H) |
